KLONER3D®500TWIN

3D PRINTERS > PRODUCTION SERIES > KLONER3D®500TWIN > PRODUCTS OVERVIEW

Ideal for the production

KLONER3D®500TWIN is the last innovation of the family of 3D printers KLONER3D® production series. Provided with dual arm and large print area is ideal for quick creating, in half the time, of architectural or mechanical models and pre-series.

The arms work independently. You can print different objects simultaneously, or you can use the entire print area by one of two arms for the realization of an object of larger size.


  • No mechanical calibration.
  • No maintenance by the user.
  • Ready for use.
  • Print environment enclosed with work area at temperature controlled.
  • Easy loading print material.
  • Interchangeable head.

 Technical Specifications

DIMENSIONS
external dimensions (WxDxH)
1000x460x600 mm
weight
65 kg

MECHANICS
structure
ground aluminium frame
external cover
metal sheet, PVC and plexiglass
print bed
heated adjusted aluminium
axis movements
XY linear axis
Z double linear axis

PRINTING
print technology
Fused Filament Fabrication (FFF)
print area (XYZ)
mod. 1 650x240x140 mm (21,84 lt)
mod. 2 650x240x140 mm (21,84 lt)
mod. 3 320x240x140 mm (10,75 lt)
mod. 4 500x240x140 mm (16,80 lt)

min. layer height
0,035*-0,05 mm
motion resolution
XYZ 0,01 mm
dual extruder
yes**
filament diameter
1,75 mm
3* mm
nozzle diameter
0,3*-0,5-0,8* mm
printable materials
multimaterial

* Depending on the print head.
**With dual extruder the printing area is reduced.

SOFTWARE
software
windows, mac and linux
file types
STL, OBJ, GCODE

OPERATING REQUIREMENTS
electric
90-264 Vac 47-63 Hz; ~580W
operation
temperature: 15°C-35°C
humidity: 15%-55%

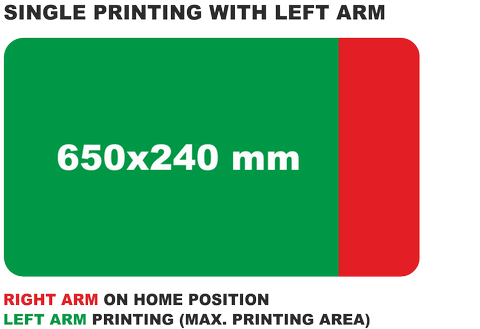

Mod. 1

KLONER3D - KLONER3D240TWIN_MOD1_EN

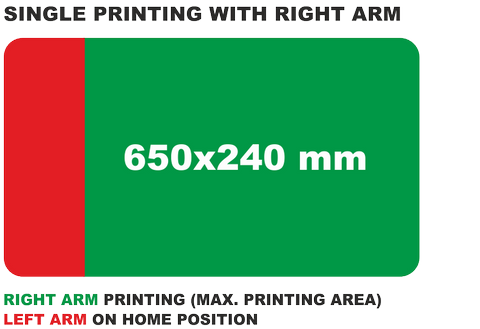

Mod. 2

KLONER3D - KLONER3D240TWIN_MOD2_EN

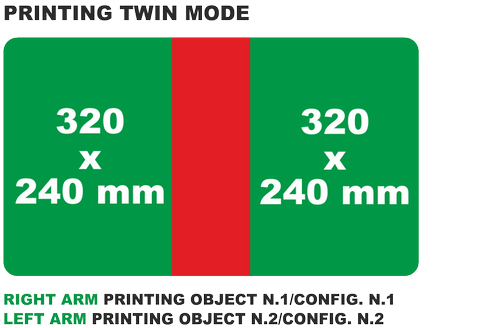

Mod. 3

KLONER3D - KLONER3D240TWIN_MOD3_EN

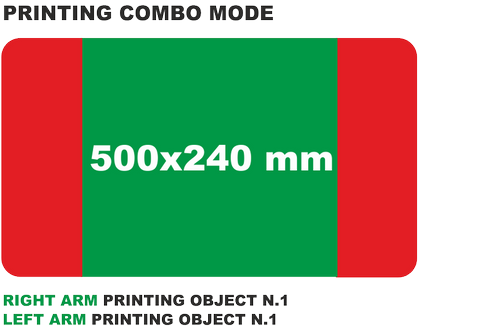

Mod. 4

KLONER3D - KLONER3D240TWIN_MOD4
